US Conec's MDC connector is a Very Small Form Factor (VSFF) duplex optical connector, expertly designed for terminating single-mode and multimode fiber cables with diameters up to 2.0mm. Utilizing proven 1.25mm LC ferrule technology, the MDC connector offers up to three times the density of traditional Duplex LC connectors, making it an ideal solution for high-density fiber management in modern data centers.
MDC Duplex connector enhances connectivity by offering field configurability with adaptable polarity and a user-friendly push/pull boot for seamless insertion and extraction. The connectors are fully compatible with existing LC port cutouts and sizes, facilitating a smooth transition from LC to MDC in current designs.
In addition to the connectors, the US Conec’s MDC platform includes a comprehensive range of solutions such as uniboot jumpers, harnesses, trunks, panels, and pre-terminated MTP options. These features ensure the MDC platform meets the rigorous demands of today’s data centers, providing reliable, high-performance connections in even the most challenging environments.
T&S's newest MDC cassette and enclosure for hyperscale data centers are key elements of our high-density product suite, meticulously designed to optimize space efficiency while maintaining top-tier performance.

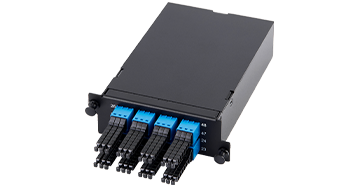

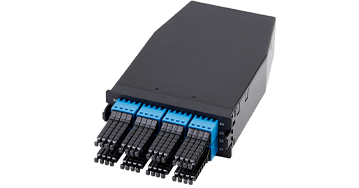

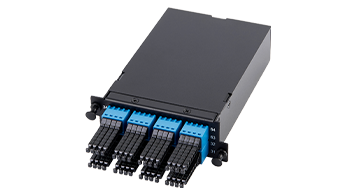

Each MDC cassette supports 64 fiber channels, and a 1U MDC enclosure can house up to four cassettes, delivering an impressive 256 fiber channels within a single 1U space. The MDC product family includes multiple versions of cassettes and enclosures, offering enhanced flexibility to meet your project’s specific requirements, both in terms of cost-effectiveness and practical application.

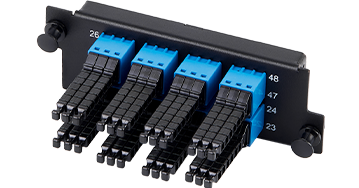

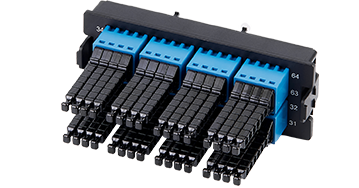

| 1U Solution | 192F | 256F | 256F | 192F | 256F | 256F |
 |  |  |  |  |  | |
| Cassette/Adapter Panel | Adapter Panel | Adapter Panel | Adapter Panel | Cassette | Cassette | Cassette |
| Material | Metal | Metal | Plastic | Metal | Metal | Plastic |
| Adapter Port | 48F MDC (Triple) | 64F MDC (Quad) | 64F MDC (Quad) | 48F MDC(Triple)-MTP | 64F MDC(Quad)-MTP | 64F MDC(Quad)-MTP |
| Specification | Download | Download | Download | Download | Download | Download |

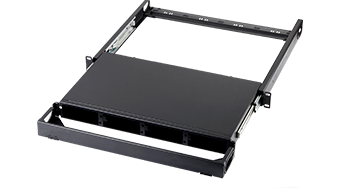

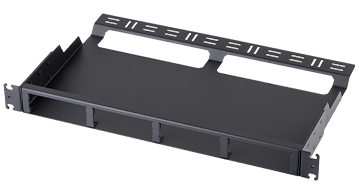

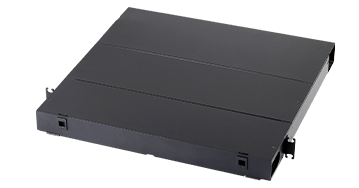

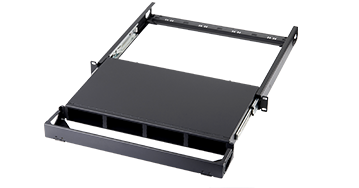

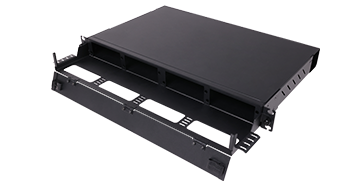

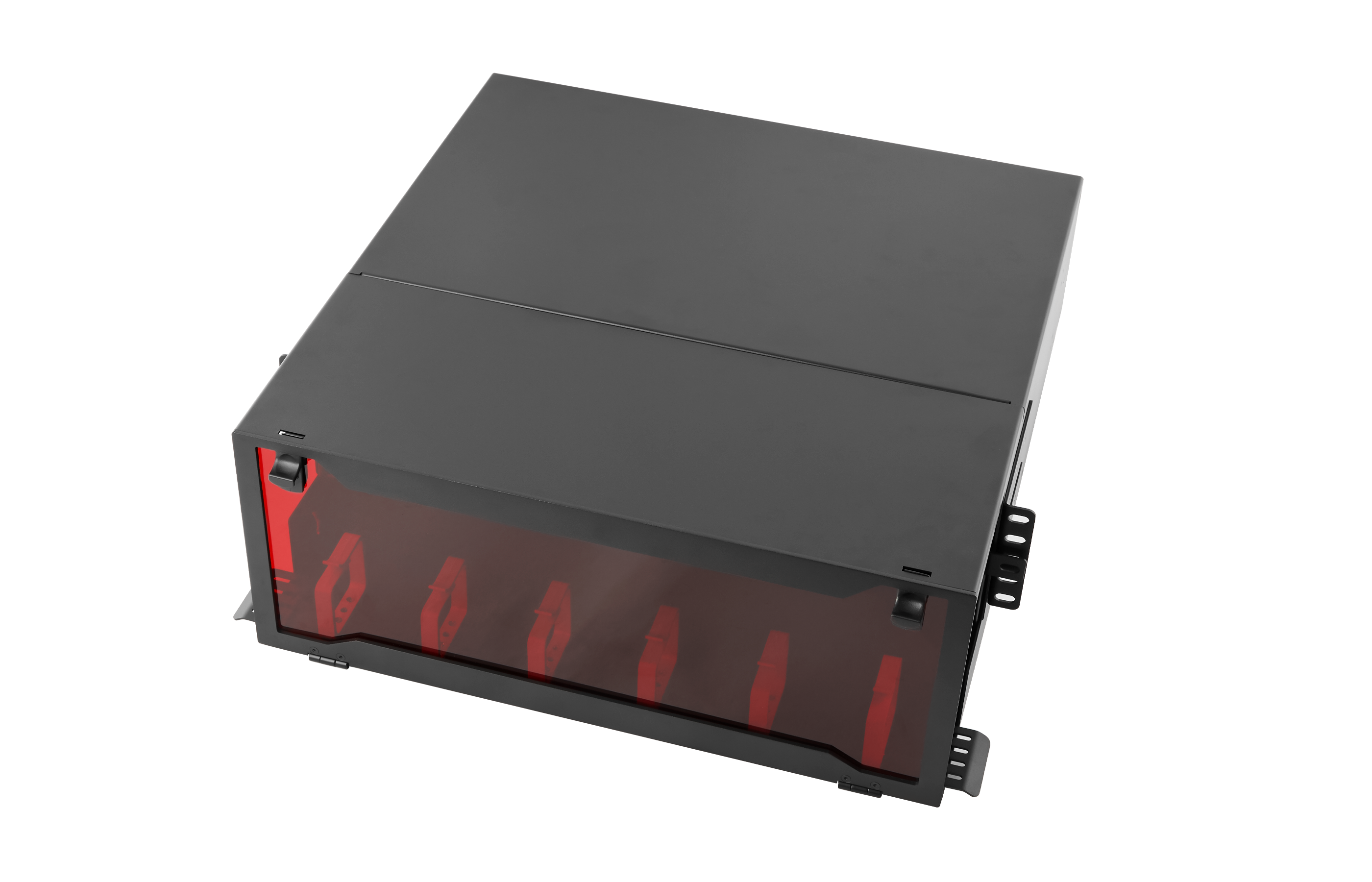

| Enclosure | UltraX | UltraY | UltraM | UltraN | UltraS |
| Unit | 1U | 1U | 1U | 1U | 1U |
 |  |  |  |  | |
| Specification | Download | Download | Download | Download | Download |

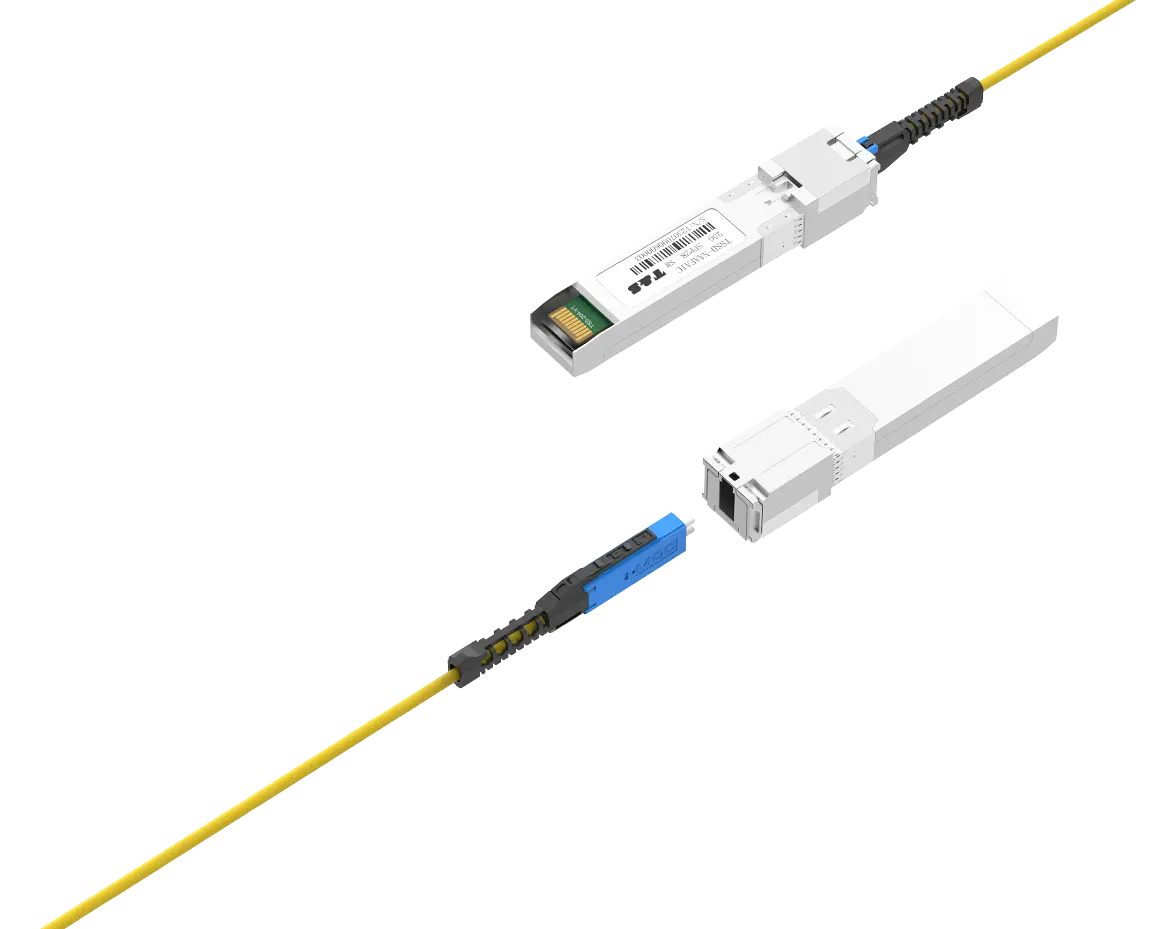

MDC's four cable format has a QSFP footprint while the two-cable format has an SFP footprint. This allows for direct coupling into MDC optical transceiver.
T&S 25G SFP28 transceiver based on MDC interface offers engineer a new option and flexibility in cabling upgrading.
1. Hot Pluggable SFP28 form factor;
2. 25Gb/s 850mm VCSEL-based transmitter;
3. 25G electrical interface;
4. Supports 25.78Gb/s transmission rate;
5. Typical Power dissipation <1.8W;
6. Supports the transmission distance up to 100m(working in 850nm wavelength);
7. Single 3.3V power supply;
8. Commercial operating case temperature range:0℃-70℃
