A Comprehensive Guide to LC UPC Patch Cords

Fiber optic technology is at the heart of modern communication networks, enabling fast, long-distance, and low-loss data transmission. Among the key components of these networks are LC UPC patch cords, known for their compact design, low insertion loss, and high reliability. Widely used in data centers, enterprise networks, and local area networks (LAN), these patch cords play a critical role in ensuring seamless connectivity. This guide explains what LC UPC patch cords are, their key features, applications, and how they differ from LC APC patch cords.

What Are LC UPC Patch Cords?

LC UPC patch cords are fiber optic cables used to connect telecommunication equipment within fiber networks. The term LC refers to the Lucent Connector, a small form factor (SFF) connector with a 1.25 mm ferrule, ideal for high-density applications. The term UPC (Ultra Physical Contact) denotes the type of endface polish applied to the fiber connector, which reduces signal reflection and ensures a more precise physical connection. These cables are lightweight, space-saving, and capable of supporting high-speed data transmission with minimal signal loss, making them a popular choice for modern fiber optic networks.

LC Connector Overview

The LC connector is a compact, high-performance connector designed for efficient interconnections in fiber optic systems. Its 1.25 mm ferrule ensures precise fiber alignment, reducing insertion loss and enabling stable communication. Its small form factor (SFF) design makes it ideal for high-density network environments, such as data centers and enterprise networks. LC connectors are compatible with both single-mode and multimode fiber, offering broad versatility across a wide range of network applications.

What is UPC Polish?

UPC (Ultra Physical Contact) polishing is a high-precision method applied to the fiber endface. The endface is polished to a smooth, slightly domed surface, minimizing reflection and improving the quality of the optical connection. This process results in a return loss of 50 dB or higher, making LC UPC patch cords suitable for general communication systems like LANs, data centers, and enterprise networks.

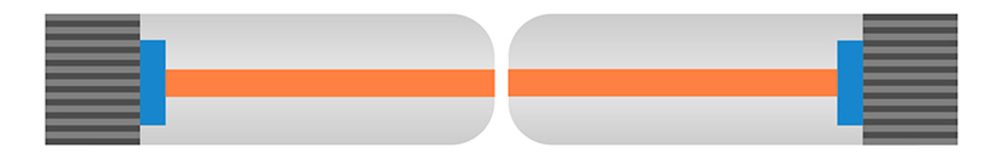

UPC polished ferrule mating

Key Features of LC UPC Patch Cords

1. Compact Design for High-Density Environments

• The small form factor allows for efficient use of rack space in data centers and telecom networks.

• Supports high-density connections between servers, switches, and other equipment.

2. Low Insertion Loss & High Return Loss

• Guarantees stable signal transmission with minimal signal degradation.

• The UPC-polished end-face reduces reflection, supporting high-speed data transfers.

3. Durability and Stable Performance

• Built to withstand frequent connections and disconnections.

• Ensures long-term performance, even in demanding network environments.

4. Broad Compatibility

• Works with both single-mode and multimode fibers.

• Widely compatible with networking equipment from leading manufacturers.

Applications of LC UPC Patch Cords

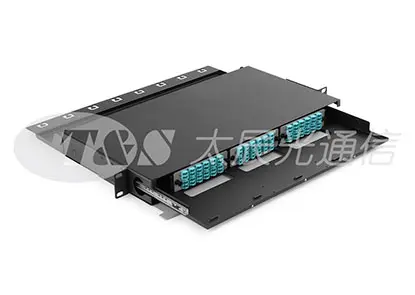

1. Data Centers and Enterprise Networks
LC UPC patch cords are indispensable in high-density network environments. Their compact design allows for better space utilization in racks and cabinets. They facilitate connections between servers, switches, and storage devices, supporting high-speed data transfers essential for cloud computing, big data, and high-performance computing (HPC) systems.

2. Local Area Networks (LANs)
LC UPC patch cords are used to link network devices like routers, switches, and servers in LANs. Their low insertion loss and high return loss ensure stable, low-latency data transmission, which is vital for seamless video conferencing, online collaboration, and cloud-based applications.

3. Telecommunication Systems
LC UPC patch cords are also used in telecommunication applications such as telephone networks, ensuring stable voice and data transmission. Their reliable performance makes them suitable for interconnection between network nodes, central offices, and distribution points.

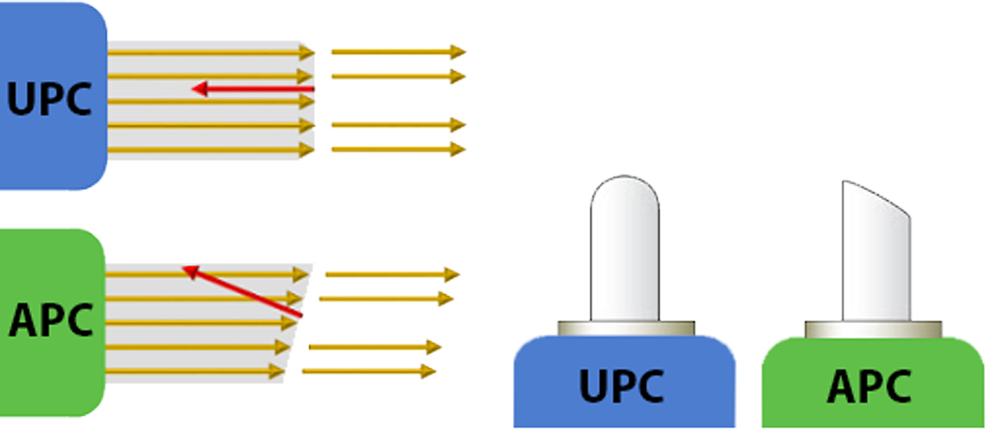

Differences Between LC UPC and LC APC Patch Cords

Fiber patch cords are commonly classified by the type of polish on their connector endfaces, with UPC (Ultra Physical Contact) and APC (Angled Physical Contact) being the most common options.

Here’s a comparison of LC UPC vs. LC APC patch cords:

When to Choose LC UPC?

· Suitable for general-purpose networks, including data centers, enterprise LANs, and telecommunication systems where return loss is not a critical concern.

· Ideal for short- to medium-distance applications with high connection density.

When to Choose LC APC?

· Best for long-distance, high-frequency networks, such as fiber-to-the-home (FTTH), passive optical networks (PON), and wavelength-division multiplexing (WDM) systems, where reflection could impact performance.

· The 8° angled end-face of APC connectors minimizes back reflections, ensuring better signal quality in precision optical systems.

How to Select the Right LC Patch Cord

When choosing an LC patch cord, consider the following factors:

1. Connector Type: Decide between LC UPC and LC APC based on your network's performance needs. For general applications, LC UPC is sufficient, but for precision systems like FTTX or WDM, opt for LC APC.

2. Fiber Type: Select single-mode (OS1/OS2) for long-distance connections or multimode (OM3/OM4) for shorter distances within data centers.

3. Cable Length: Measure the required length to avoid excess slack or strain on the cable.

4. Density Requirements: For high-density environments, prioritize compact LC connectors to maximize rack space.

Why Choose T&S LC UPC Patch Cords?

T&S offers a wide range of high-quality fiber patch cables designed to meet the demands of modern network infrastructures. Our LC UPC patch cords deliver:

· Industry-leading performance with low insertion loss and high return loss.

· Compact, space-saving designs to support high-density environments.

· Custom lengths and connector configurations to suit a variety of application needs.

Conclusion

LC UPC patch cords are essential for building high-speed, high-density communication networks. Their small form factor, low insertion loss, and stable performance make them a top choice for data centers, enterprise networks, and LANs. By offering a reliable, low-reflection connection, LC UPC patch cords ensure smooth, stable data transmission, even in demanding network environments.

For the best quality and performance, choose T&S fiber patch cables, engineered to meet the highest standards for connectivity. Whether you’re upgrading a data center or expanding a LAN, T&S has the right solution for your fiber optic needs. Explore our product range to find the perfect cable for your network infrastructure.
