Unlocking PAM4 Modulation

As the demand for higher data rates continues to accelerate in modern communication systems, conventional signaling techniques face increasing limitations in bandwidth efficiency and overall performance. A pivotal advancement addressing these challenges is Pulse Amplitude Modulation with Four Levels (PAM4). This modulation format has gained widespread adoption across data centers, optical communications, and next-generation Ethernet standards, enabling greater data throughput while optimizing spectral efficiency. This article delves into the fundamentals of PAM4, how it differs from traditional NRZ (Non-Return-to-Zero) modulation, and its key applications and benefits.

Understanding PAM4 Modulation

PAM4 is a multi-level modulation scheme that conveys data by modulating the amplitude of the signal at four discrete levels. Unlike binary modulation schemes, which represent data using two distinct signal states, PAM4 transmits two bits per symbol, effectively doubling the data capacity at the same baud rate. This feature enables network designers to achieve higher data throughput without proportionally increasing the signal rate, making it a critical technology for high-speed interconnects.

One of the most significant implementations of PAM4 is in the IEEE 802.3bs 400G Ethernet standard, where it plays a crucial role in optical and electrical interfaces. Beyond Ethernet, PAM4 has also become a key component in high-speed SERDES (Serializer/Deserializer) designs, PCIe applications, and advanced optical transceivers.

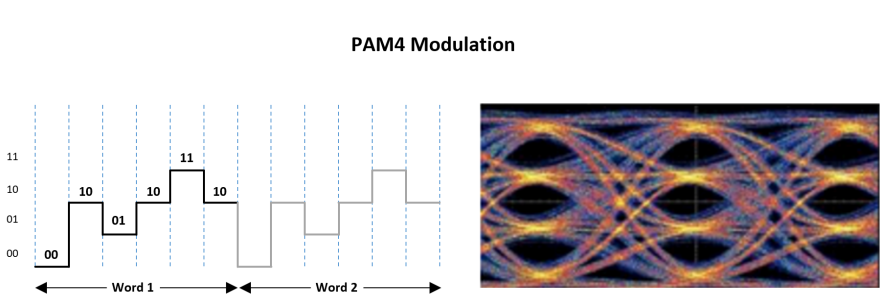

In PAM4 encoding, the four signal amplitude levels correspond to the following binary values:

00: Lowest signal level

01: Second signal level

10: Third signal level

11: Highest signal level

This multi-level encoding allows for more efficient use of available bandwidth, though it also introduces challenges such as increased noise susceptibility and signal integrity concerns.

PAM4 vs. NRZ: Key Differences

PAM4 is often compared to NRZ, a traditional binary modulation technique that has been widely used in earlier generations of high-speed data transmission. While both methods remain relevant, PAM4’s ability to encode more data per symbol gives it a distinct advantage in high-bandwidth applications.

NRZ encoding uses two signal levels (0 and 1), with each level representing a single bit per symbol. In contrast, PAM4 utilizes four amplitude levels, enabling the transmission of twice the amount of data within the same signaling period. This increased efficiency makes PAM4 particularly valuable in applications requiring high data throughput without expanding the transmission bandwidth.

However, the denser encoding of PAM4 results in reduced signal-to-noise ratio (SNR), making the transmission more susceptible to errors. To compensate for this, forward error correction (FEC) is typically employed to maintain data integrity, whereas NRZ often operates reliably without FEC in lower-speed applications.

Key Advantages of PAM4 Modulation

PAM4’s ability to enhance data transmission efficiency has made it an indispensable technology in high-speed networking. Some of its primary benefits include:

• Higher Data Rates: By encoding two bits per symbol, PAM4 effectively doubles the data rate compared to NRZ without requiring additional bandwidth.

• Optimized Bandwidth Utilization: With increasing constraints on available bandwidth, PAM4 enables greater data throughput within the same spectral range, making it a preferred choice for 400G, 800G, and beyond.

• Scalability for Future Networks: As data center interconnects scale to 800G and 1.6T Ethernet, PAM4 provides a viable path forward without necessitating fundamental changes to existing fiber infrastructure.

• Enhanced Optical Link Compatibility: PAM4 is well-suited for optical networks, where simply increasing the baud rate is not always a feasible solution due to physical limitations in fiber optic transmission.

Applications of PAM4 Modulation

PAM4 has emerged as a cornerstone technology for high-speed Ethernet and data center networking. Some of its most significant applications include:

• 400G and Beyond: PAM4 is a foundational technology in the IEEE 802.3bs and IEEE 802.3ck standards, supporting Ethernet speeds of 200G, 400G, 800G, and 1.6T to accommodate the ever-growing need for higher bandwidth in cloud and enterprise networks.

• Data Center Interconnects: Leading cloud service providers and hyper-scale data centers utilize PAM4-enabled transceivers, such as QSFP-DD and OSFP, to facilitate high-speed connectivity between servers and networking equipment.

• Fiber Optic Communications: By enabling higher-capacity transmission over optical links, PAM4 enhances network efficiency while reducing overall deployment costs.

• 5G and Future Wireless Networks: As 5G deployments advance, PAM4 is being explored for high-speed front-haul and backhaul applications, ensuring low-latency, high-bandwidth connectivity. Moving forward, it is expected to play a crucial role in 6G network development as well.

Conclusion

PAM4 modulation represents a transformative step forward in high-speed data transmission, offering twice the data capacity of NRZ while maintaining efficient bandwidth utilization. Although challenges such as increased noise sensitivity and higher power consumption exist, advancements in digital signal processing (DSP), error correction, and signal integrity techniques continue to enhance its viability.

As data rates climb to 800G, 1.6T, and beyond, PAM4 remains at the forefront of next-generation networking solutions, shaping the future of data center interconnects, high-speed Ethernet, and optical communication systems. With its ability to enable ultra-fast, high-capacity networks, PAM4 is not just an innovation—it is an essential building block for the future of high-speed connectivity.
