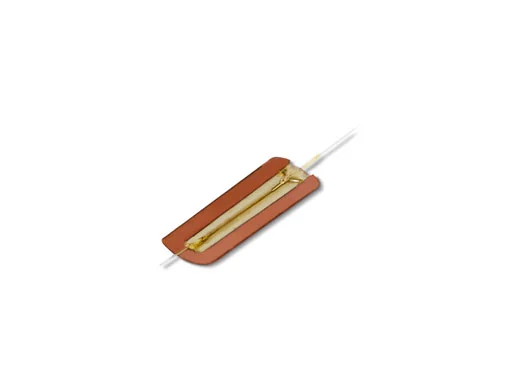

FBG strain sensor is a strain measurement sensor based on fiber Bragg grating. It can monitor the strain value of the measured object by measuring the spectral shifts of FBG.
• Suitable for application scenarios where traditional resistance strain gauges used
• Suitable for application scenarios where traditional surface-mounted resistance strain gauges used
• Suitable for harsh environments with the requirements of high anti-electromagnetic interference and explosion-proof
• Gauge length the same as standard resistance strain gauges
• Passive and free from electromagnetic interference
• High networking with series or parallel connected
• Lifespan >107 cycles (±1500μɛ)
• High stability, no zero-point drift
| Strain | Unit | Specification |
| Gauge Length | mm | 3 |
| Strain Sensitivity | pm/uε | ~1.3 |
| Strain Range | uε | ±3000 |
| Linearity | % | 99.9 |
| Temperature Range | ℃ | -40~+85 |
| Temperature | Unit | Specification |
| Temperature Sensitivity | pm/℃ | ~28 |
| Temperature Range | ℃ | -40~+85 |
| Optics | Unit | Specification |
| Central Wavelength | nm | 1510-1590 |
| Reflectivity | % | ≥10 |
| SMSR | dB | ≥15 |
| Machinery | Unit | Specification |
| Dimension | L(mm)*W(mm) *T(mm) | ~19*7*0.7 |
| Connector Type | - | FC/SC/LC/MT |
| Pigtail Length | m | 1 |
| Fiber Bending Radius | mm | 10 |
| Pigtail Protection Type | - | Optical fiber ribbon +0.9mm tube |
| Reliability | - | Conform to GR-1221-Core |
