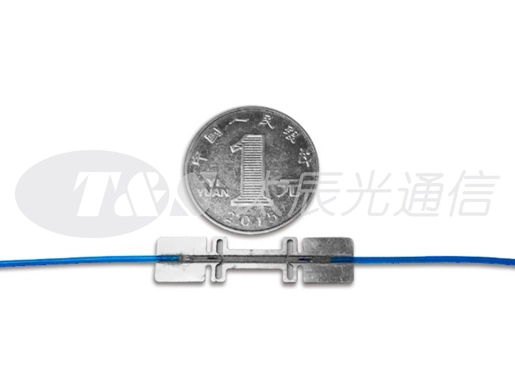

Utilizing Fiber Bragg Grating (FBG) measurement technology combined with T&S's patented sensor packaging technology, the FBG patch strain sensor enables precise micro-strain measurements without the need for calibration.
• Immune to electromagnetic interference
• Compact size and lightweight design
• Long operational lifespan
• Easy to install
| Performance Parameters | Unit | Specification |
| Strain Coefficient | pm/με | ~1.2 |
| Strain Error | % | <1 |
| Operating Temperature | °C | -120 |
| Strain Range | με | -5000 |
| Gauge Length | mm | 22±1 |
| Mechanical Parameters | Unit | Specification |
| Dimensions | mm | 34.5×8×0.8 |
| Weight | g | ~2 |
| Material | - | Stainless steel |
| Installation | - | Spot welding or adhesive bonding |
| Fiber Type | - | SMF-28e |
| Protective Sleeve Type | - | Φ0.9mm tubing |
| Pigtail Length | m | 2 on each side |
| Optical Parameters | Unit | Specification |
| Center Wavelength | nm | 1525 ~ 1565 |
| Reflectivity | % | >75 |
| Half-Power Bandwidth | nm | <0.3 |
| Side Mode Suppression Ratio (SMSR) | dB | >15 |
| Connector | - | FC/APC |
