Name: 400G QSFP-DD DAC
Brand: T&S Communications Co., Ltd.
Availability: InStock

QSFP-DD passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel, and meets 400G Ethernet and InfiniBand requirements. Available in a broad rang of wire gages from 28AWG through 30AWG-this 400G copper cable assembly features low insertion loss and low cross talk.

QSFP-DD uses PAM4 signals for transmission, which doubles the rate. However, there are more stringent requirements for cable insertion loss. For detailed requirements, please see High Speed Characteristics.

GET A QUOTE About 400G QSFP-DD DAC

400G QSFP-DD DAC Specification Download

Features of 400G QSFP-DD DAC

Compatible with IEEE 802.3bj and IEEE 802.3cd
Supports aggregate data rates of 400Gbps(PAM4)
Optimized construction to minimize insertion loss and cross talk
Pull-to-release slide latch design
28AWG through 30AWG cable

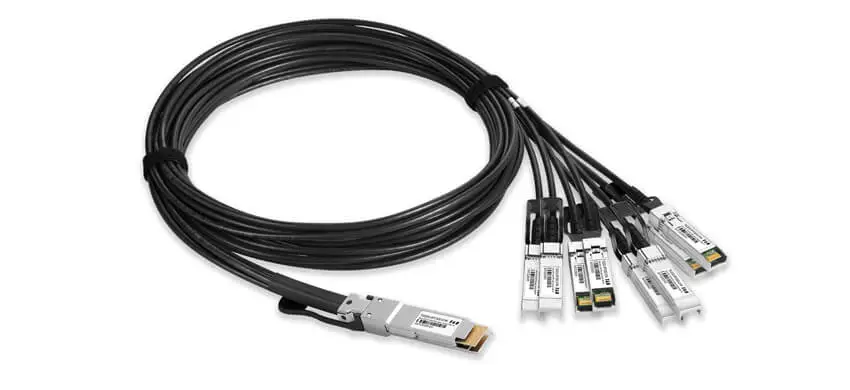

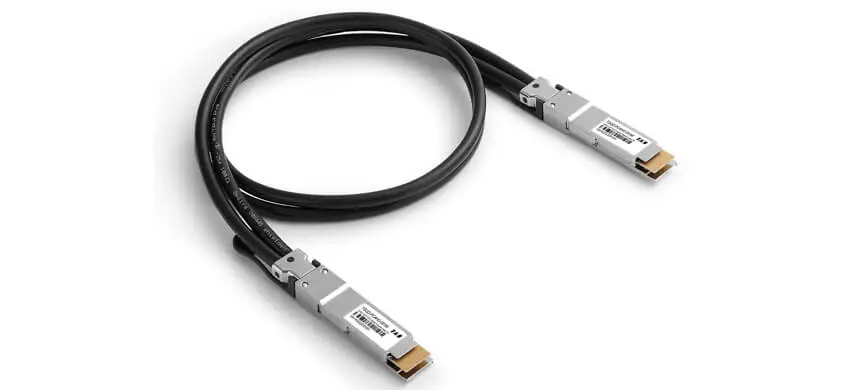

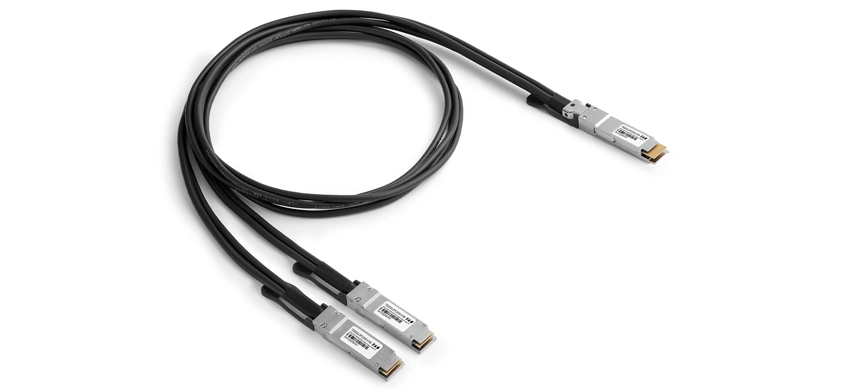

Straight and break out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
RoHS Compatible

Applications of 400G QSFP-DD DAC

Switches, servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment
400G Ethernet(IEEE 802.3cd)
InfiniBand

Specifications of 400G QSFPDD DAC

Recommended Operation Condition

Pin Descriptions

High Speed Characteristics

Parameter	Symbol	Min	Max	Unit
Operating Case Temperature	Topc	0	70	degC
Storage Temperature	Tst	-40	85	degC
Relative Humidity (non-condensation)	RS	35	60	%
Supply Voltage	VCC3	3.135	3.465	V
Voltage on LVTTL Input	Vilvttl	-0.3	VCC3 +0.2	V
Power Supply Current	ICC3	-	15	mA
Total Power Consumption	Pd	-	0.05	W

Notes:

Stress or conditions exceed the above range may cause permanent damage to the device.

This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not applied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Pin	Logic	Symbol	Description
1	-	GND	Ground
2	CML-I	Tx2n	Transmitter Inverted Data Input
3	CML-I	Tx2p	Transmitter Non-Inverted Data Input
4	-	GND	Ground
5	CML-I	Tx4n	Transmitter Inverted Data Input
6	CML-I	Tx4p	Transmitter Non-Inverted Data Input
7	-	GND	Ground
8	LVTTL-I	ModSelL	Module Select
9	LVTTL-I	ResetL	Module Reset
10	-	Vcc Rx	+3.3V Power Supply Receiver
11	LVCMOS-	SCL	2-wire serial interface clock
	I/O
12	LVCMOS-	SDA	2-wire serial interface data
	I/O
13	-	GND	Ground
14	CML-O	Rx3p	Receiver Non-Inverted Data Output
15	CML-O	Rx3n	Receiver Inverted Data Output
16	-	GND	Ground
17	CML-O	Rx1p	Receiver Non-Inverted Data Output
18	CML-O	Rx1n	Receiver Inverted Data Output
19	-	GND	Ground
20	-	GND	Ground
21	CML-O	Rx2n	Receiver Inverted Data Output
22	CML-O	Rx2p	Receiver Non-Inverted Data Output
23	-	GND	Ground
24	CML-O	Rx4n	Receiver Inverted Data Output
25	CML-O	Rx4p	Receiver Non-Inverted Data Output
26	-	GND	Ground
27	LVTTL-O	ModPrsL	Module Present
28	LVTTL-O	IntL	Interrupt
29	-	Vcc Tx	+3.3V Power supply transmitter
30	-	Vcc1	+3.3V Power supply
31	LVTTL-I	LPMode	Low Power Mode
32	-	GND	Ground
33	CML-I	Tx3p	Transmitter Non-Inverted Data Input
34	CML-I	Tx3n	Transmitter Inverted Data Input
35	-	GND	Ground
36	CML-I	Tx1p	Transmitter Non-Inverted Data Input
37	CML-I	Tx1n	Transmitter Inverted Data Input
38	-	GND	Ground
39	-	GND	Ground
40	CML-I	Tx6n	Transmitter Inverted Data Input
41	CML-I	Tx6p	Transmitter Non-Inverted Data Input
42	-	GND	Ground
43	CML-I	Tx8n	Transmitter Inverted Data Input
44	CML-I	Tx8p	Transmitter Non-Inverted Data Input
45	-	GND	Ground
46	-	Reserved	-
47	-	VS1	-
48	-	VccRx1	+3.3V Power supply
49	-	VS2	-
50	-	VS3	-
51	-	GND	Ground
52	CML-O	Rx7p	Receiver Non-Inverted Data Output
53	CML-O	Rx7n	Receiver Inverted Data Output
54	-	GND	Ground
55	CML-O	Rx5p	Receiver Non-Inverted Data Output
56	CML-O	Rx5n	Receiver Inverted Data Output
57	-	GND	Ground
58	-	GND	Ground
59	CML-O	Rx6n	Receiver Inverted Data Output
60	CML-O	Rx6p	Receiver Non-Inverted Data Output
61	-	GND	Ground
62	CML-O	Rx8n	Receiver Inverted Data Output
63	CML-O	Rx8p	Receiver Non-Inverted Data Output
64	-	GND	Ground
65	-	NC	-
66	-	Reserved	-
67	-	VccTx1	+3.3V Power supply
68	-	VCC2	+3.3V Power supply
69	-	Reserved	-
70	-	GND	Ground
71	CML-I	Tx7p	Transmitter Non-Inverted Data Input
72	CML-I	Tx7n	Transmitter Inverted Data Input
73	-	GND	Ground
74	CML-I	Tx5p	Transmitter Non-Inverted Data Input
75	CML-I	Tx5n	Transmitter Inverted Data Input
76	-	GND	Ground

Parameter	Symbol	Min	Typical	Max	Unit	Note
Differential Impedance	TDR	90	100	110	Ώ	-
Insertion loss	SDD21	-16.06	-	-8	dB	At 13.28 GHz
Differential Return Loss	SDD11 SDD22	-12.45	-	See 1	dB	At 0.05 to 4.1 GHz
Differential Return Loss	SDD11 SDD22	-3.12	-	See 2	dB	At 4.1 to 19 GHz
Common-mode to common-mode output return loss	SCC11 SCC22	-	-	-2	dB	At 0.2 to 19 GHz
Differential to common-mode return loss	SCD11 SCD22	-12	-	See 3	dB	At 0.01 to 12.89 GHz
Differential to common-mode return loss	SCD11 SCD22	-10.58	-	See 4	dB	At 12.89 to 19 GHz
Differential to common Mode Conversion Loss	SCD21-IL	-	-	-10	dB	At 0.01 to 12.89 GHz
		-	-	See 5		At 12.89 to 15.7 GHz
		-	-	-6.3		At 15.7 to 19 GHz
Channel Operating Margin	COM	-	-	-3	dB	-
